Insulation Monitoring Relay (RKI) with DC Meter Function

51 000 ₽

A unique product with the ability to monitor electricity in consumption mode, including as part of DC charging stations.

The RKI is intended for:

monitoring the quality of insulation coating in electric vehicle charging cables using GB/T, CHADEMO and CCS technologies in «Mode 4» in accordance with GOST R IEC 61851 and managing electrical subsystems of the charging station;
measuring insulation resistance (leakage currents) in DC circuits with insulated busbars up to 1000 V and switching electrical circuits in protection and automation devices when insulation resistance falls below a certain, preset value;
managing the station’s electricity meter, measuring consumption.

Specifications

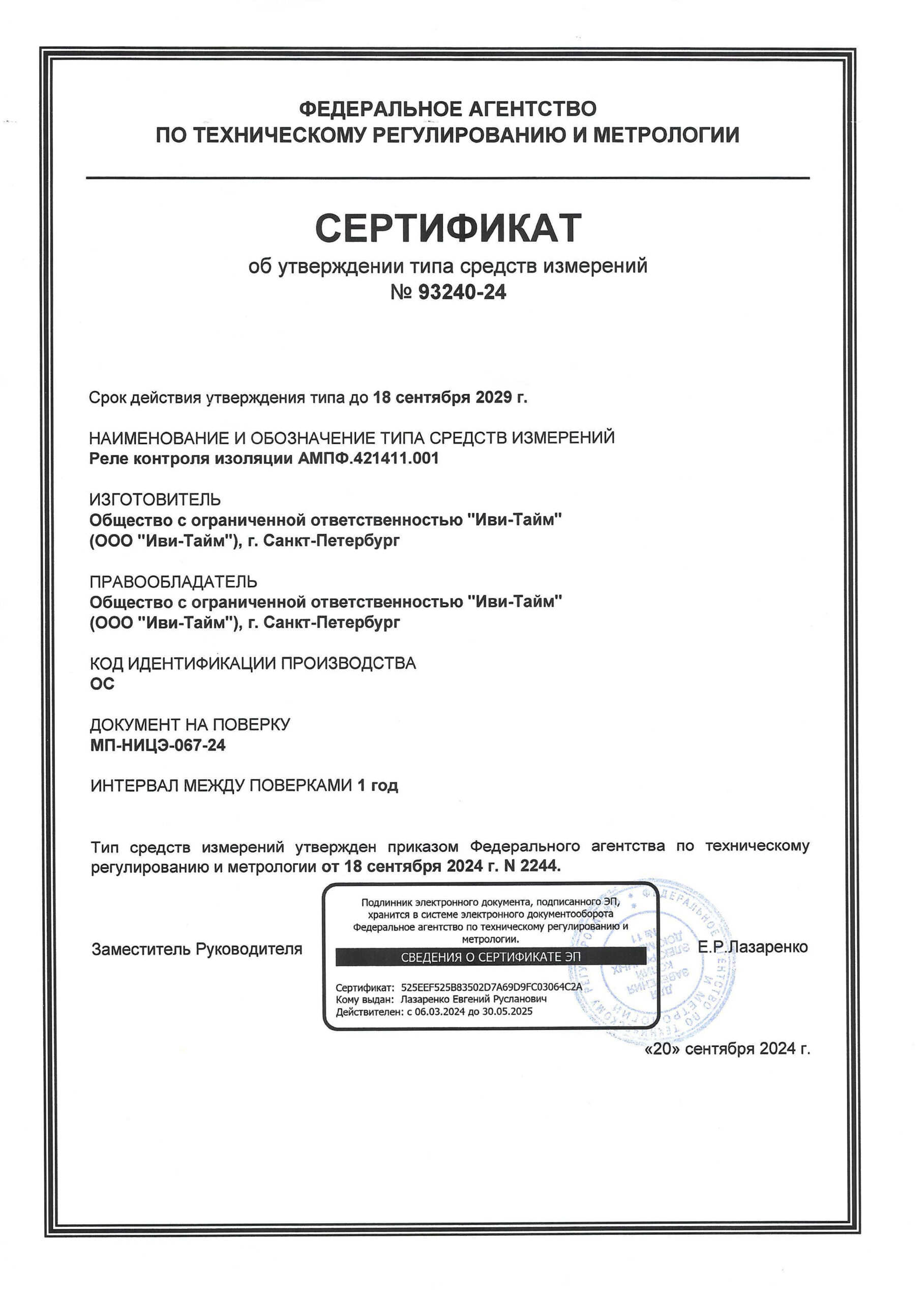

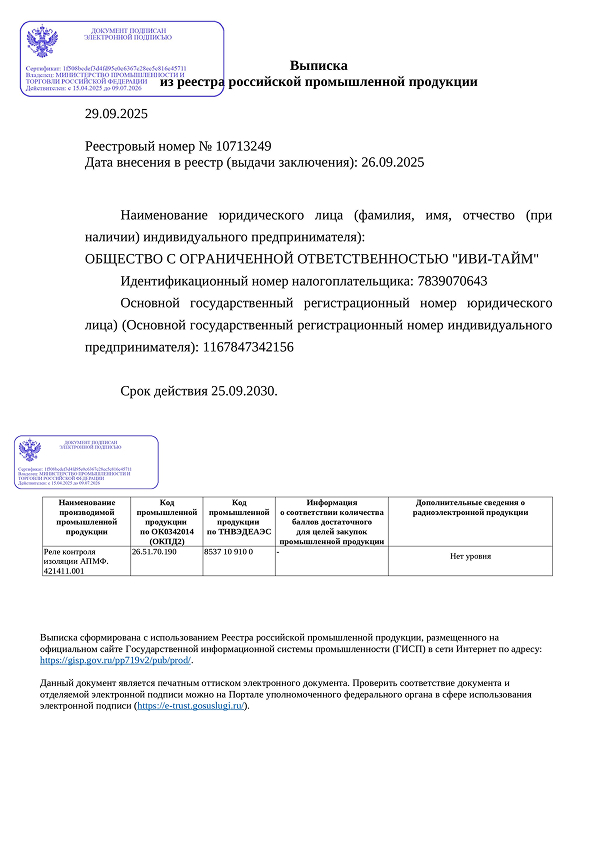

Documents

Accessories

Supply Voltage	From 9 to 24 V, DC
Power Consumption, max	10W.
Consumed Current, max	1 A
Insulation Resistance Measurement	From 50 V to 1000 V
Measurement Method	Ground fault detection using neutral grounding
Sensitivity	Pre-alarm at 500 Ohm/V Alarm at 100 Ohm/V
Response Time	Less than or equal to 1.0s
False Trigger Prevention Time	Greater than or equal to 0.2s
Resistance (R)	Greater than or equal to 40 KOhm
DC Voltage Measurement	From 5 V to 1000 V with an accuracy of ±1%
DC Current Measurement	From 1 A to 500 A with an accuracy of ±1 %
DC Electrical Energy Measurement	U, from 5 to 1000 V I, from 1 to 500 A with an accuracy of ±1%
Operating Temperature	From -40 ˚С to 55 ˚С
Storage Temperature	From -40 ˚С to 80˚С
Altitude Above Sea Level	Up to 2000 m.
Humidity at +25 °C, max	98%.

Ethernet Port Availability
1 Isolated CAN Port Availability
3 NO Relay Ports Availability
3 Insulation Resistance Measurement Channels. Independent for each pole relative to the ground conductor.
3 Voltage Measurement Channels Availability
3 Current Measurement Channels Availability when connecting Hall sensors
EEPROM Memory Availability
