The portable EV-Time Portable 316 Type 2 (Mennekes) charging device allows charging European electric vehicles with a Type-2 port with a maximum power of 11 kW from a three-phase network with a maximum consumed current of 16A. The charging device is a universal solution for charging an electric vehicle both on the go and at home.
The charger is equipped with an LED indicator and an OLED display, informing about the status of the charging session. The connector is closed with a special protective cap to prevent its damage. It has functions for delayed start and current adjustment, which are regulated by touch buttons located on the power unit.
| Connector Type | Type2 (Mennekes) |
| Number of Phases | 3 phases |
| Current per Phase | 16А |
| Input Voltage | 400V±10% (380V) |

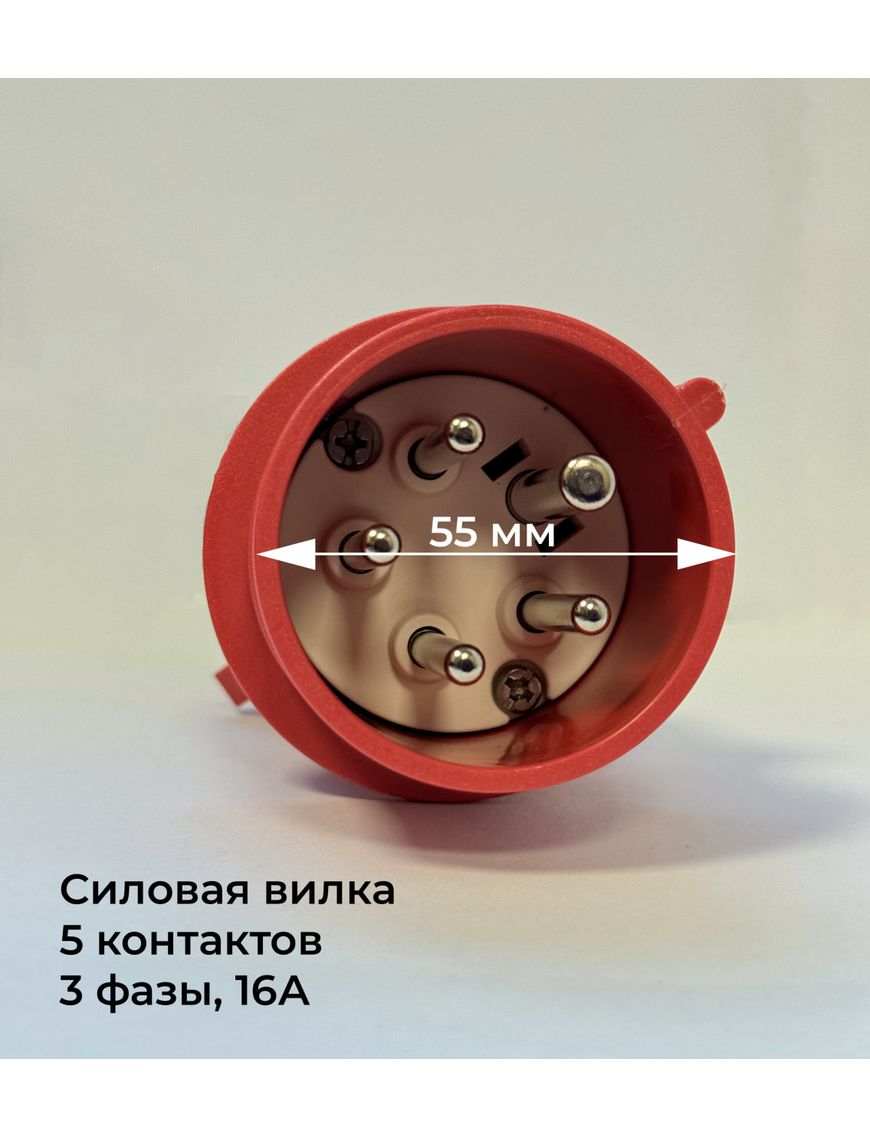

| Plug Type | Power, 3 phases, 16A (3P+PE+N 16A 380V) |
| Current Adjustment | Yes |
| Display Availability | Yes |
| Cable Length, m | 5 |
| Power | up to 11 kW |
| Dimensions (WxHxD), cm | 39x30x10 |
| Weight, kg | 3.1 |
