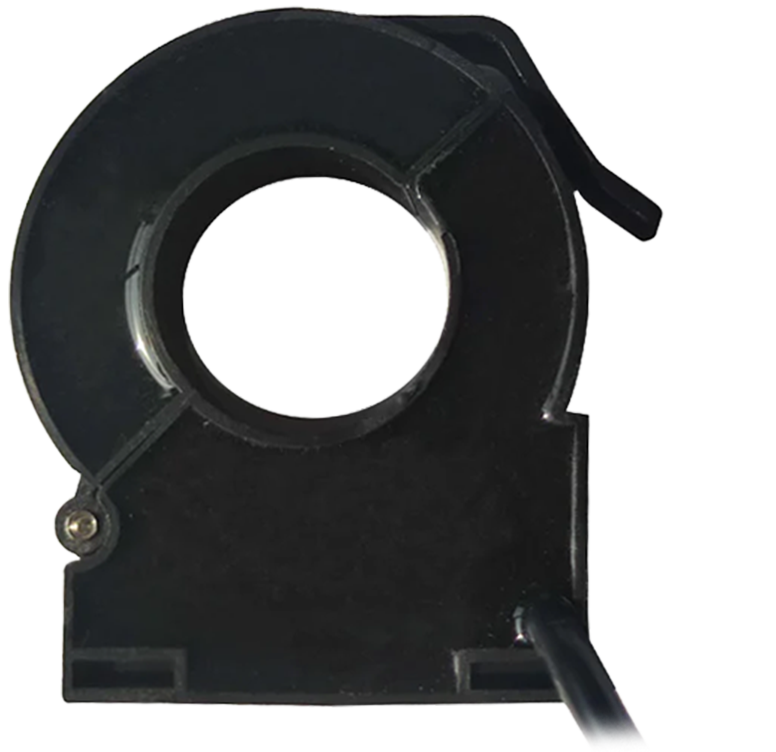

A Hall effect DC current sensor is designed to measure DC, AC, and pulsed currents. The device is built on the open-loop principle and provides isolation between the primary winding and the secondary circuit via galvanic isolation.

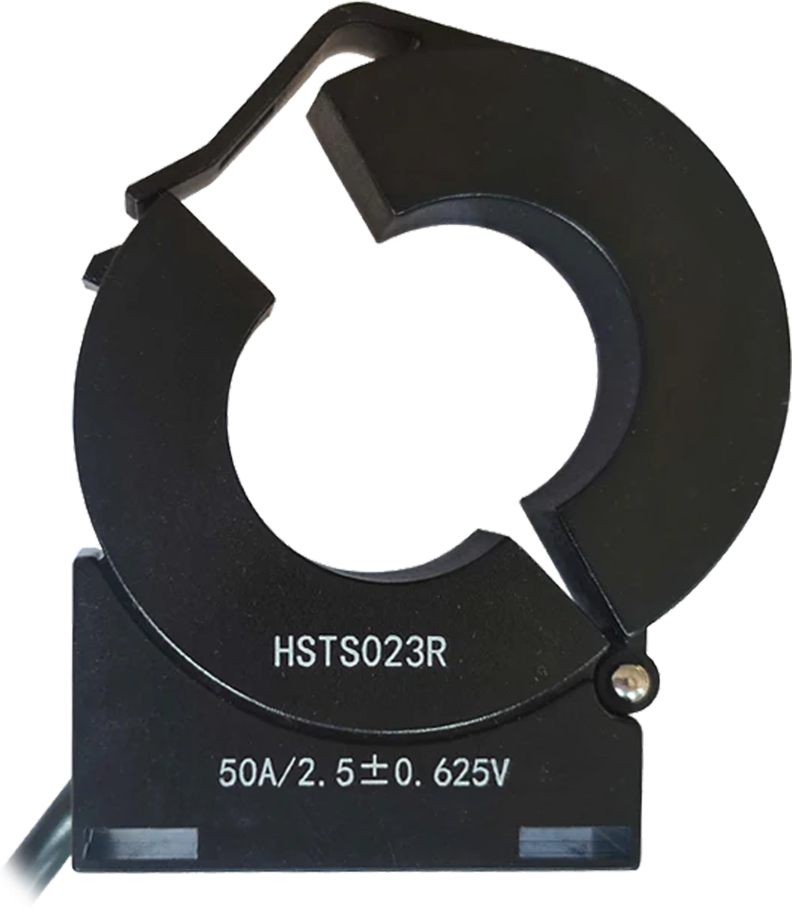

The split-core design allows easy installation of the device on a cable without breaking the primary circuit. The aperture diameter is 23.6 mm. The sensor’s output signal accurately replicates the current waveform in the conductor.
Among the advantages of this device is low power consumption, which is especially important when measuring high currents.
The length of the output cables (black) is 50 or 100 cm.
| Nominal Input | 50 A, 100 A, 200 A, 300 A, 400 A, 500 A, 600 A |
| Nominal Output | 2.5 ± 0.625 V |
| Operating Frequency | DC..25 kHz |
| Accuracy | 1% |
| Supply Voltage (± 5%) | +5 V |
| Dielectric Strength (50 Hz 1 min) | 2.5 kV |
| Measured Resistance | 10 kOhm |
| Linearity | 1% |
| Response Time | 5 µs |
| Power Consumption | 16 mA |
| Zero Offset, TA=25°C | ±15 mV |
| Operating Temperature | -10..+70 |
| Storage Temperature | -25..+70 |
| Mounting Type | Panel |
| Flammability Rating | UL94-V0 |
